UV Fade Meters are designed to reproduce outdoor and indoor deterioration factors such as sunlight, temperature, rainfall and dew. Test method using the UV Carbon Arc has the oldest history and enough experiences especially in fabric and textile industries.

Related Standards : ISO 11431, ISO 2135, ASTM D5031, ASTM G151, ASTM G153, JIS A 1415, JIS A 1439, JIS K 5701-1, AATCC TM16, JIS L 0842, JIS K 6404-4, JIS D 0205, SAE J2020, JIS D 0202, JIS E 4037, JIS Z 0237, JIS Z 1528, JIS B 7751

*Subject to the accessories.

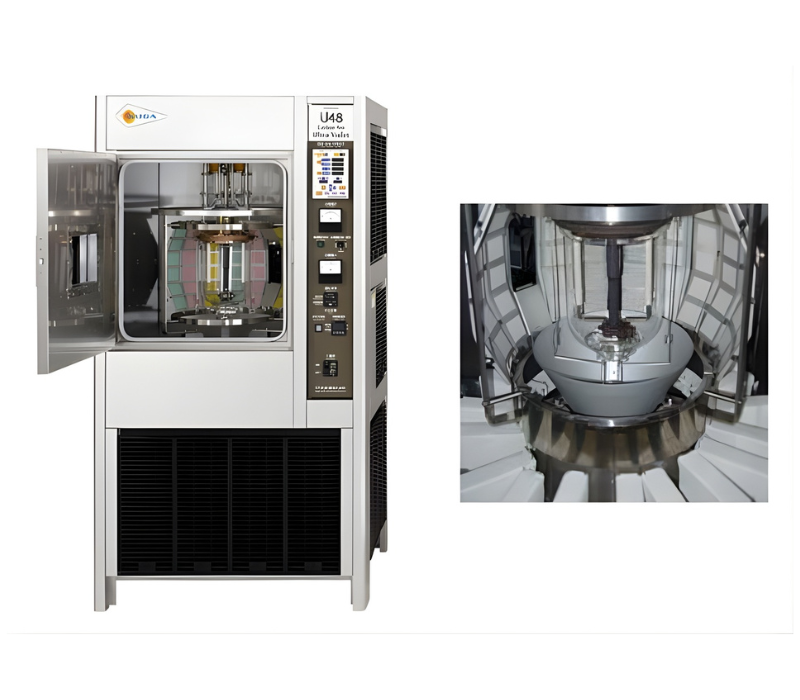

UV Fade Meter U48AU

• High reproducibility and stability
• Continuous testing for48 hours
• Capable of temperature and humidity control
• Irradiance 500W/m2 ±100W/m2 at 300 to 700nm
• Specimen Capacity: 102 pcs (65x55x1mm)
• Temp. and Hum. range : BPT63±3℃, 35~50±5%rh
• Low temp. model U48S with refrigeration system is an option.
• High temp. model U48AUH / U48H (BPT95℃) is an option.
• Automatic BPT Control model U48AUB / U48B is an option.
• BPT Recording model U48AUBR / U48BR is an option.
• Both Automatic BPT Control with BPT Recording model U48AUBBR / U48BBR is an option.
• U48AUBBR / U48BBR is an option.

UV Fade Meter U48

• Standard model with cost-efficiency.
• Continuous testing for48 hours
• Irradiance 500W/m2 ±100W/m2 at 300 to 700nm
• Specimen Capacity: 102 pcs (65x55x1mm)
• Temp. and Hum. range : BPT63±3℃, under 50%rh (not controlled).
• Wide variety of options and customization is available.

.
